ezGenomeTracks provides ez_sequence() to plot nucleotide sequence from a reference genome. Each base is colored following UCSC Genome Browser conventions: A (green), C (blue), G (gold), T (red), N (grey).

Setup

You need a BSgenome data package for your organism. For human hg38:

BiocManager::install("BSgenome.Hsapiens.UCSC.hg38")
library(BSgenome.Hsapiens.UCSC.hg38)
#> Loading required package: GenomeInfoDb
#> Warning: package 'GenomeInfoDb' was built under R version 4.3.3
#> Loading required package: BiocGenerics
#>
#> Attaching package: 'BiocGenerics'
#> The following objects are masked from 'package:stats':
#>
#>     IQR, mad, sd, var, xtabs
#> The following objects are masked from 'package:base':
#>
#>     anyDuplicated, aperm, append, as.data.frame, basename, cbind,
#>     colnames, dirname, do.call, duplicated, eval, evalq, Filter, Find,
#>     get, grep, grepl, intersect, is.unsorted, lapply, Map, mapply,
#>     match, mget, order, paste, pmax, pmax.int, pmin, pmin.int,
#>     Position, rank, rbind, Reduce, rownames, sapply, setdiff, sort,
#>     table, tapply, union, unique, unsplit, which.max, which.min
#> Loading required package: S4Vectors
#> Loading required package: stats4
#>
#> Attaching package: 'S4Vectors'
#> The following object is masked from 'package:utils':
#>
#>     findMatches
#> The following objects are masked from 'package:base':
#>
#>     expand.grid, I, unname
#> Loading required package: IRanges
#> Loading required package: BSgenome
#> Loading required package: GenomicRanges
#> Loading required package: Biostrings
#> Warning: package 'Biostrings' was built under R version 4.3.3
#> Loading required package: XVector
#>
#> Attaching package: 'Biostrings'
#> The following object is masked from 'package:base':
#>
#>     strsplit
#> Loading required package: BiocIO
#> Loading required package: rtracklayer
#>
#> Attaching package: 'rtracklayer'
#> The following object is masked from 'package:BiocIO':
#>
#>     FileForFormat
genome <- BSgenome.Hsapiens.UCSC.hg38::Hsapiens

Define a short region to inspect (sequence tracks are most useful at base-pair resolution):

region <- "chr2:231109000-231109030"

Visual styles

ez_sequence() offers two visual styles controlled by the style argument.

Text style (default)

The default style = "text" draws bold, UCSC-colored nucleotide letters with no background or border — a clean look that is readable at narrow regions and blends well with other tracks.

ez_sequence(genome, region = region)
#> Warning in geom_sequence(style = style, show_labels = show_labels, label_size =
#> label_size, : Ignoring unknown parameters: `label_colour`

Tile style

style = "tile" draws colored background tiles with white letter labels on top, echoing the classic UCSC “dense” sequence display.

ez_sequence(genome, region = region, style = "tile")
#> Warning in geom_sequence(style = style, show_labels = show_labels, label_size =
#> label_size, : Ignoring unknown parameters: `label_colour`

Automatic label suppression

When the region is wider than max_label_bp (default 200 bp), show_labels = "auto" (the default) suppresses individual letter labels automatically. This prevents overplotting while still rendering colored blocks for orientation.

# Wide region: labels hidden automatically, tiles drawn instead
ez_sequence(genome, region = "chr2:231109000-231109500", style = "tile")
#> Warning in geom_sequence(style = style, show_labels = show_labels, label_size =
#> label_size, : Ignoring unknown parameters: `label_colour`

You can override this behaviour by setting show_labels explicitly:

# Force labels off regardless of region width
ez_sequence(genome, region = region, show_labels = FALSE, style = "tile")
#> Warning in geom_sequence(style = style, show_labels = show_labels, label_size =
#> label_size, : Ignoring unknown parameters: `label_colour`

Customizing colors

Use the colors argument to override individual nucleotide colors. Only the specified bases are changed; others retain UCSC defaults.

ez_sequence(
  genome,
  region = region,
  colors = c(A = "darkorchid", T = "deeppink")
)
#> Warning in geom_sequence(style = style, show_labels = show_labels, label_size =
#> label_size, : Ignoring unknown parameters: `label_colour`

Inspect the full default palette:

ez_sequence_palette()
#>         A         C         G         T         N
#> "#00A800" "#0000CC" "#CC9900" "#CC0000" "#999999"

Replace the entire palette by supplying all five bases:

grayscale <- c(
  A = "#222222",
  C = "#555555",
  G = "#888888",
  T = "#BBBBBB",
  N = "#DDDDDD"
)
ez_sequence(genome, region = region, colors = grayscale)
#> Warning in geom_sequence(style = style, show_labels = show_labels, label_size =
#> label_size, : Ignoring unknown parameters: `label_colour`

Adjusting label size and tile height

ez_sequence(
  genome,
  region = region,
  style = "tile",
  label_size = 4,
  tile_height = 1
)
#> Warning in geom_sequence(style = style, show_labels = show_labels, label_size =
#> label_size, : Ignoring unknown parameters: `label_colour`

Stacking with other tracks

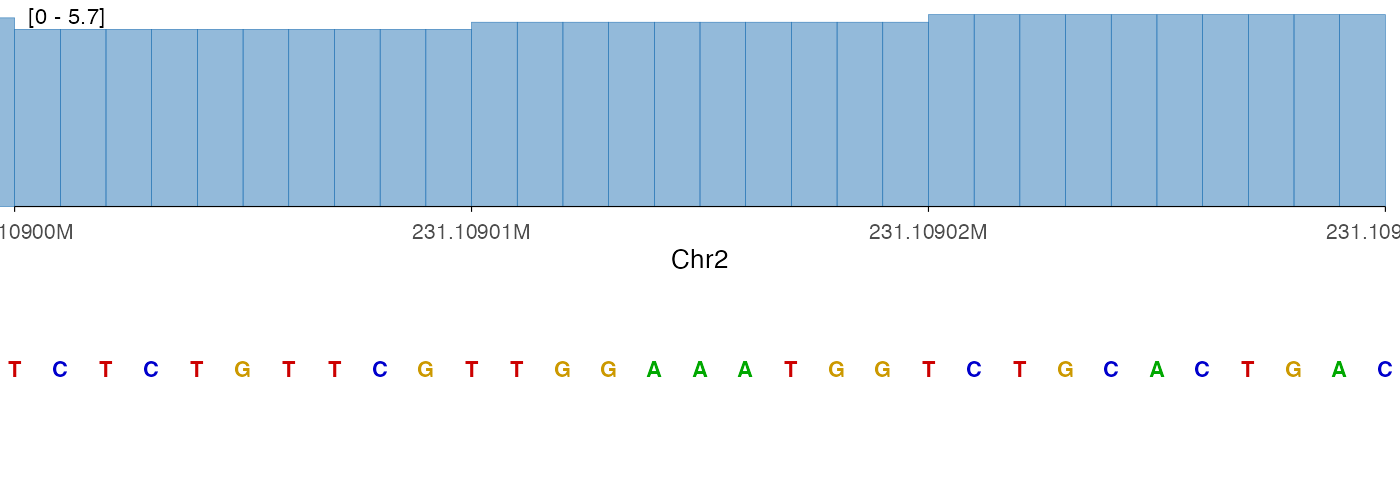

ez_sequence() returns a standard ggplot2 object and is fully compatible with vstack_plot(). A common pattern is to place a sequence track at the bottom of a stacked plot for base-level context.

bw0 <- system.file(
  "extdata",
  "avg_chr2-231091223_231109786_231113600_0.bw",
  package = "ezGenomeTracks"
)
cov_track <- ez_coverage(bw0, region = region, y_axis_style = "simple")
seq_track <- ez_sequence(genome, region = region)
#> Warning in geom_sequence(style = style, show_labels = show_labels, label_size =
#> label_size, : Ignoring unknown parameters: `label_colour`

vstack_plot(cov_track, seq_track, heights = c(1))

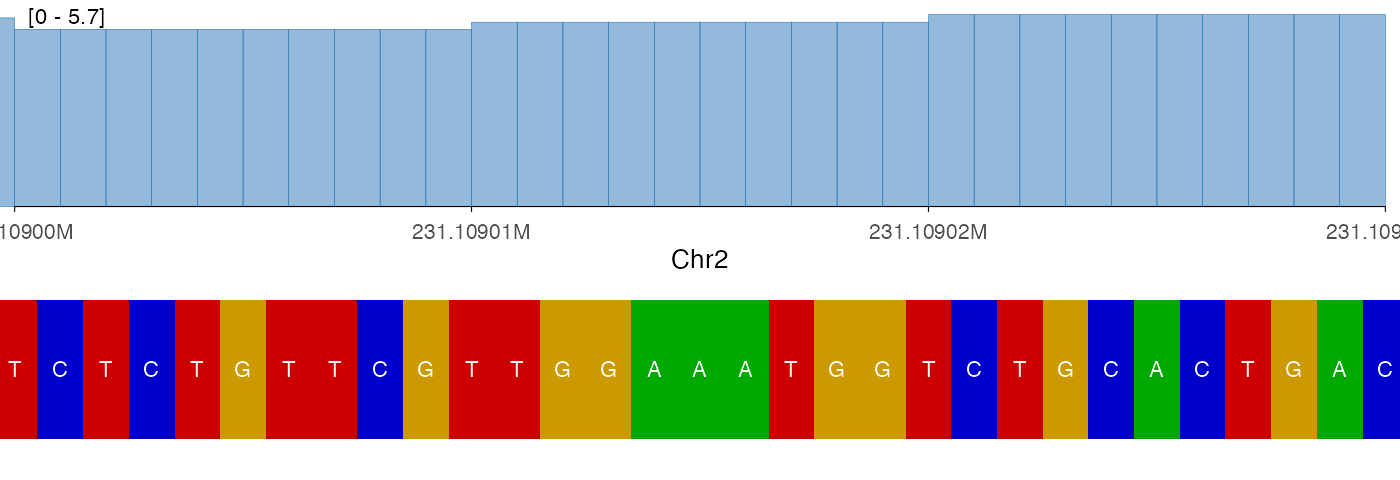

The tile style can also be useful in a stacked context, particularly when the region is very narrow:

vstack_plot(
  ez_coverage(bw0, region = region, y_axis_style = "simple"),
  ez_sequence(genome, region = region, style = "tile"),
  heights = c(1)
)
#> Warning in geom_sequence(style = style, show_labels = show_labels, label_size =
#> label_size, : Ignoring unknown parameters: `label_colour`

Low-level usage with geom_sequence

For full control, you can use geom_sequence() directly in a ggplot() call. The expected data frame needs position, nucleotide, and fill columns, which you can build with ez_sequence_palette() and a DNAString:

library(BSgenome)
library(GenomicRanges)

region_gr <- parse_region(region)
seq_char <- as.character(getSeq(genome, region_gr)[[1]])
nucs <- strsplit(seq_char, "")[[1]]
palette <- ez_sequence_palette()

seq_df <- data.frame(
  position = seq(
    GenomicRanges::start(region_gr),
    by = 1L,
    length.out = length(nucs)
  ),
  nucleotide = nucs,
  fill = palette[nucs]
)

head(seq_df)
#>    position nucleotide    fill
#> 1 231109000          T #CC0000
#> 2 231109001          C #0000CC
#> 3 231109002          T #CC0000
#> 4 231109003          C #0000CC
#> 5 231109004          T #CC0000
#> 6 231109005          G #CC9900
ggplot(seq_df, aes(x = position, label = nucleotide, fill = fill)) +
  geom_sequence(label_size = 3.5) +
  scale_fill_identity() +
  scale_x_genome_region(region) +
  ylim(0, 1) +
  ez_sequence_theme()
#> Warning in geom_sequence(label_size = 3.5): Ignoring unknown parameters:
#> `label_colour`
